Twenty-fourth Ward (or West Philadelphia) Works, 1855

Chapter 9 of The Water Works of the City of Philadelphia: The Story of their Development and Engineering Specifications

Compiled in 1931 by Walter A. Graf (Staff Engineer, The Budd Company, Philadelphia), with the assistance of Sidney H. Vought and Clarence E. Robson. This online version was created from an original volume at the Historical Society of Pennsylvania, Catalog No. WZ 23591 (4th Fl. Folio).

Walter Graf History Home Page
(With Notes on the Text, Preface, and Acknowledgements)
Reading the Preface will give a quick overview of the beginnings and expansion of the Philadelphia water system.


A black-and-white version of a watercolor by David Johnston Kennedy, from the collection of the Historical Society of Pennsylvania. Kennedy’s caption reads: “The old Twenty-Fourth Ward Water Works, West Philadelphia, was on the west side of the Schuylkill river opposite to Turtle Rock and south of Solitude. Engine No. 1 was started by Birkenbine [Birkinbine] & Trotter on July 19th and to regularly supply the ward on August 1st, 1855. Chimney stack 127 feet high. Standing pipe [Standpipe] 130 feet high and 5 feet in diameter. Demolished machinery sold and brick chimney thrown down February 23rd, 1872.”

THE PUBLIC WATER SUPPLY activities until 1851 had been confined to the districts of the city east of the Schuylkill River, but in the fall of that year a group of influential men of West Philadelphia assembled for the purpose of considering the expediency and practicability of erecting a water works to supply West Philadelphia.

A committee was appointed consisting of the following citizens: Mr. E. M. Eakin, as Committee President; and Messrs. Benjamin R. Miller, Dr. R. Bicknell, C. C. Pierson, J. Sidney Keen and Robert L. Martin. They employed Messrs. Birkinbine and Trotter, civil engineers and contractors, to make a thorough examination of the whole subject. The following plan was submitted to the committee:

The location to be on the west side of the Schuylkill, near the foot of the old inclined plane, at or near the Belmont Cottage; a subsiding reservoir to be constructed together with a pumping plant consisting of two direct acting vertical Cornish pumping engines with a capacity that would supply the district for some time anticipating reasonable growth; and two reservoirs to be built on the elevated ground near the top of the plane. The plan seemed to be satisfactory, but the estimated cost, $300,000, was considered too great a financial burden for the district to carry.

Mr. Birkinbine then came forward with a plan for works similar in design but smaller and more limited in capacity. This plan was also rejected because it still called for spending more money than the committee thought advisable. The committee was then persuaded to visit the works of the Germantown Water Company. The layout and equipment of these works impressed them very much. Plans and estimates were prepared for a somewhat similar layout with modifications to suit the views of the committee, and a contract was almost immediately entered into at an estimated cost of $120,000. The contract called for completion in one year, and this short period required for construction influenced the committee in its decision. It was also decided to install a standpipe to serve until the district could afford to finance the cost of storage reservoirs and lay the estimated three miles of main pipes required to connect the reservoirs with the built-up sections of the district. The site selected was situated north of the Fairmount Dam, on the west side of the Schuylkill River where the Zoological Gardens were later located. On January 24, 1853 the construction operations began. They were completed and service was inaugurated in August 1855.

Location of forebay of the 24th Ward Water Works, in relation to the Philadelphia Zoo. From the 1875 annual report of the Zoo. (PWD)

At first two high pressure engines were ordered for these works, and they were already under construction when it was decided to change the specifications to call for direct acting vertical Bull Cornish engines and cancel the order for the high pressure engines, since the Cornish engines were considered more economical in fuel consumption than the high pressure engines. It was figured that one-quarter the amount of fuel required by the high pressure engines would be saved by using the Bull Cornish engines, and that this would in but a short time more than offset the cost of the work already done on the high pressure engines.

The water from the river was directed through a planked tunnel to a paved chamber in which were placed three screening strainers. In ordinary stages of the river, the water was 5½ feet deep in the tunnel and at the extremely low rate of flow (two miles per day in the tunnel when but 2 million gallons per day were taken into the chamber) there was sufficient time for the heavier waterborne particles to settle. The lighter floating particles were screened out. Provision was made for the convenient removal of the sediments.
The subsiding reservoir was 165 feet long and 75 feet wide and its water depth was 16½ feet under ordinary conditions of river water volume. This reservoir acting as a sedimentation basin allowed the water to deposit most of the impurities. The depth of the water proved to be of the greatest importance in purifying by subsidence. It was found that the reservoir was of ample capacity and size to render the water pure and limpid under almost all conditions of the river, provided no greater volume of water was pumped from it than the works were calculated to supply.

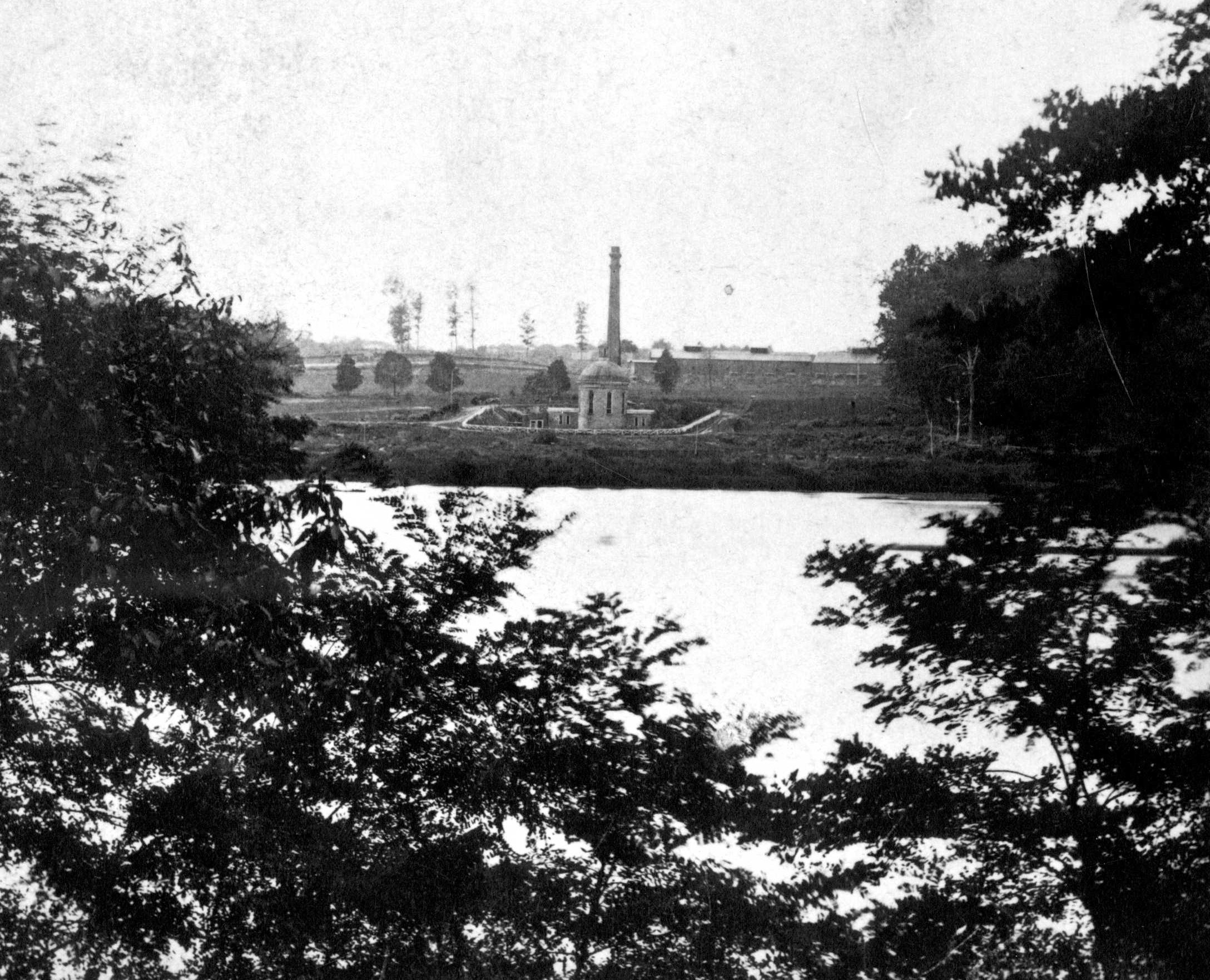

View of 24th Ward Water Works from east side of Schuylkill River. This detail, from a James Cremer stereoview circa 1870, shows the openness of the land where the Philadelphia Zoo was soon after established. (PWD)

The water works buildings were all of stone of the hard gneiss rock variety found in the vicinity of the works. The engine house was circular and surmounted by a dome supported on cast iron girders. On the girders strong hooks were attached over each engine cylinder for use in lifting the machinery in case repairs were needed. The boiler houses were built one on each side of the engine house with short flights of stairs connecting them with the engine house. Slate supported on iron framing was used for the fireproof roofs of the buildings. The boiler stack was built on a base of cut stone 30 feet high. Above this the stack was continued in brick to 90 feet making a total height of 120 feet. The stack flues were 40 inches in diameter and lined with fire-brick to a height of 30 feet from the bottom.

The cylinders of the Bull Cornish engines were bored 50 inches in diameter and had a piston stroke of eight feet (96 inches!). The cylinders were inverted and placed directly over the pumps with the piston rods directly connected to the plungers of the pumps. These plungers were each 17 inches in diameter and operated in the same stroke as the engines, i.e., eight feet. They were plain plunger pumps fitted with double beat valves having metallic facings. A lever beam operated the air, feed and cold water pumps. These engines were also fitted with Birkinbine’s patented equilibrium governor. All parts of the machinery were made of extraordinary strength from materials of the best quality. Great care was taken to make the engines as efficient as possible so as to economize on fuel consumption. Each steam cylinder was surrounded by a steam tight jacket or outer cylinder of somewhat larger diameter and steam was introduced into the space between them on its way to the power cylinder. The jacket was covered with two inches of felt, outside of which was a six inch brick wall, and this latter was in turn encased by wooden staves, bound with polished metallic bands.

There were four boilers of Cornish design, two in each boiler house. Each boiler was six feet in diameter and 32 feet long and equipped with two safety valves. Either of the engines might be supplied with steam from any one or all of the boilers, and they were so arranged that any one boiler might be removed without disturbing all the others. The engines were also entirely independent of each other.

The standpipe was situated on high ground, about 2,000 feet from the works, near 35th and Sycamore Streets. Its base was 100 feet above the level of the river. Its main body was of heavy boilerplate five feet in diameter and 130 feet high. Around its lower portion there was an octagonal base of ashler masonry composed of gneiss rock, 36 feet high, and each angle of this base was sustained by a buttress.

A 16-inch main led from the works to the standpipe, and a 16-inch outlet led from near the bottom of the standpipe to the distributing mains of the district. Water was maintained in the standpipe at a height of 100 to 127 feet, giving heads of water in the different parts of the district varying from 120 to 225 feet.

Each pump raised 90 gallons at every stroke and operated at the rate of 10 strokes a minute and so lifted 1,296,000 gallons in 24 hours. Under necessity the pumps were capable of making 14 strokes per minute by which the capacity of each of the pumps was increased to 1,814,400 gallons in 24 hours. These works without storage reservoirs could supply about 20,000 persons with water.

24th Ward Water Works, ca. 1860. Some have wondered if the two unidentified men leaning on the fence are Messrs. Birkinbine & Trotter, who designed this works. (PWD)

In 1870 after 15 years of active service the works were abandoned. At this time the Belmont Works further up the river had been completed and supplied all the West Philadelphia districts. The abandonment caused considerable criticism for many years, because the works had proven adequate to meet all demands made upon them, and the engines were the most economical in the Water Department.
